Printing

Method

Thermal dot line printing

Resolution

203dpi, 8dots/mm

Speed (Max)

40mm/s

Paper

Width

58mm

Valid printing width

48mm

Thickness

60～80μm

Roller diameter

≤30mm

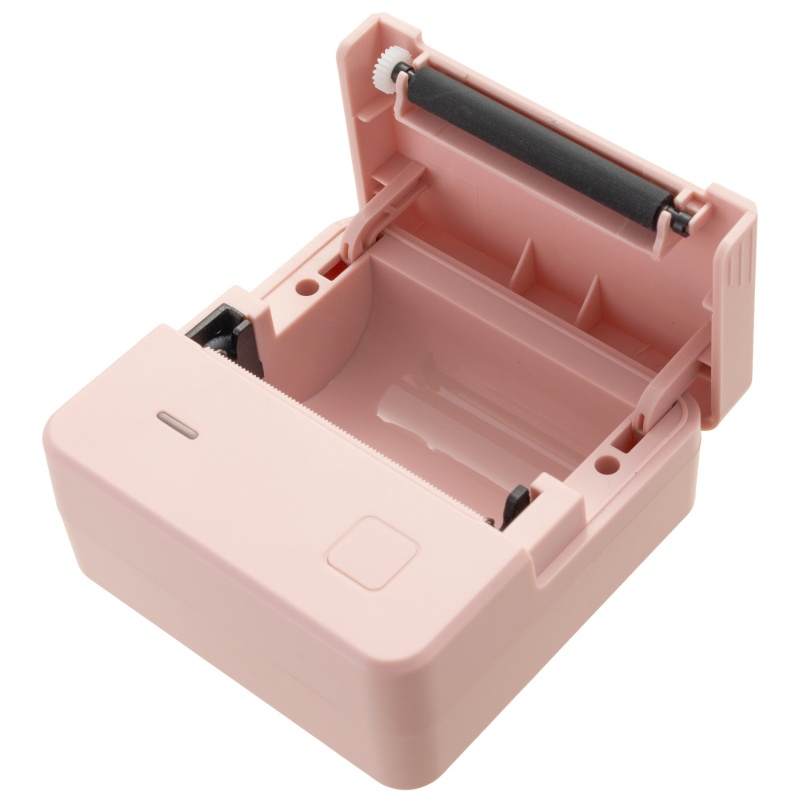

Loading

Easy loading mechanism

Interface

Bluetooth and USB

Character Set

Font

ASCII:9×17,12×24; Multiple code pages support

Barcode Symbologies

1D

UPC-A, UPC-E, EAN8, EAN13, CODE39, ITF, CODEBAR, CODE128, CODE93

2D

QR code

Graphics

Support bitmap printing with different density and user defined bitmap printing (Max. 40K for per bitmap, and Max. 64K for total)

Detection

Sensors

Paper out/ Low battery /high temperature

Command

ESC/POS

Charging

Adapter

 5V/1A in adapter

Battery

2000mAh/3.7V rechargeable Li-ion battery

Physical characteristics

Working condition

-10°C ~ 50°C, 20% ~ 85% R.H

Storage condition

-20°C ~ 70°C, 5% ~ 95% R.H

Dimension

81.8*81.8*37.3mm(W*D*H)

Weight

136g (without paper roll)
