- D1
- YAEN
- China
- In Stock
- 10,000pcs/Month

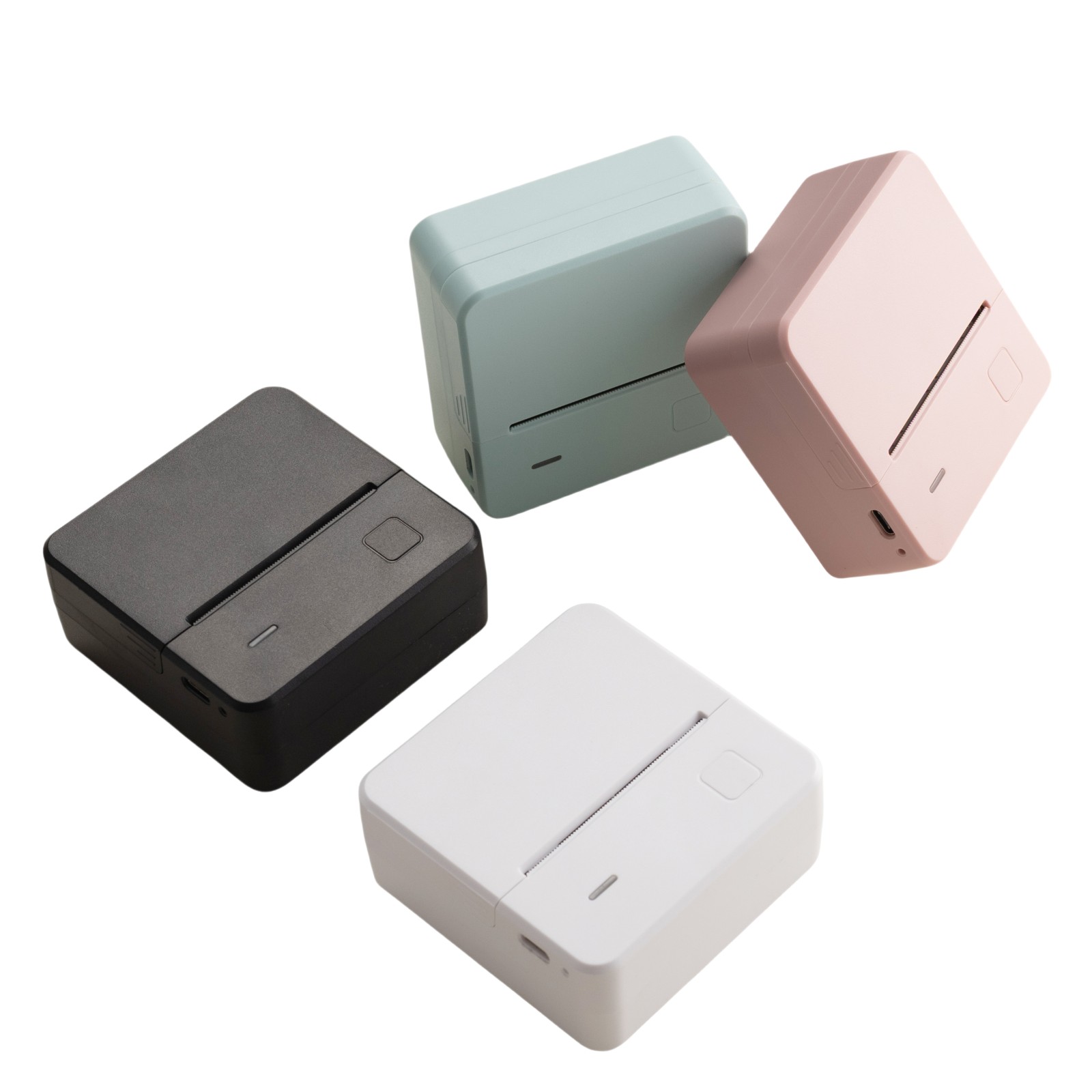

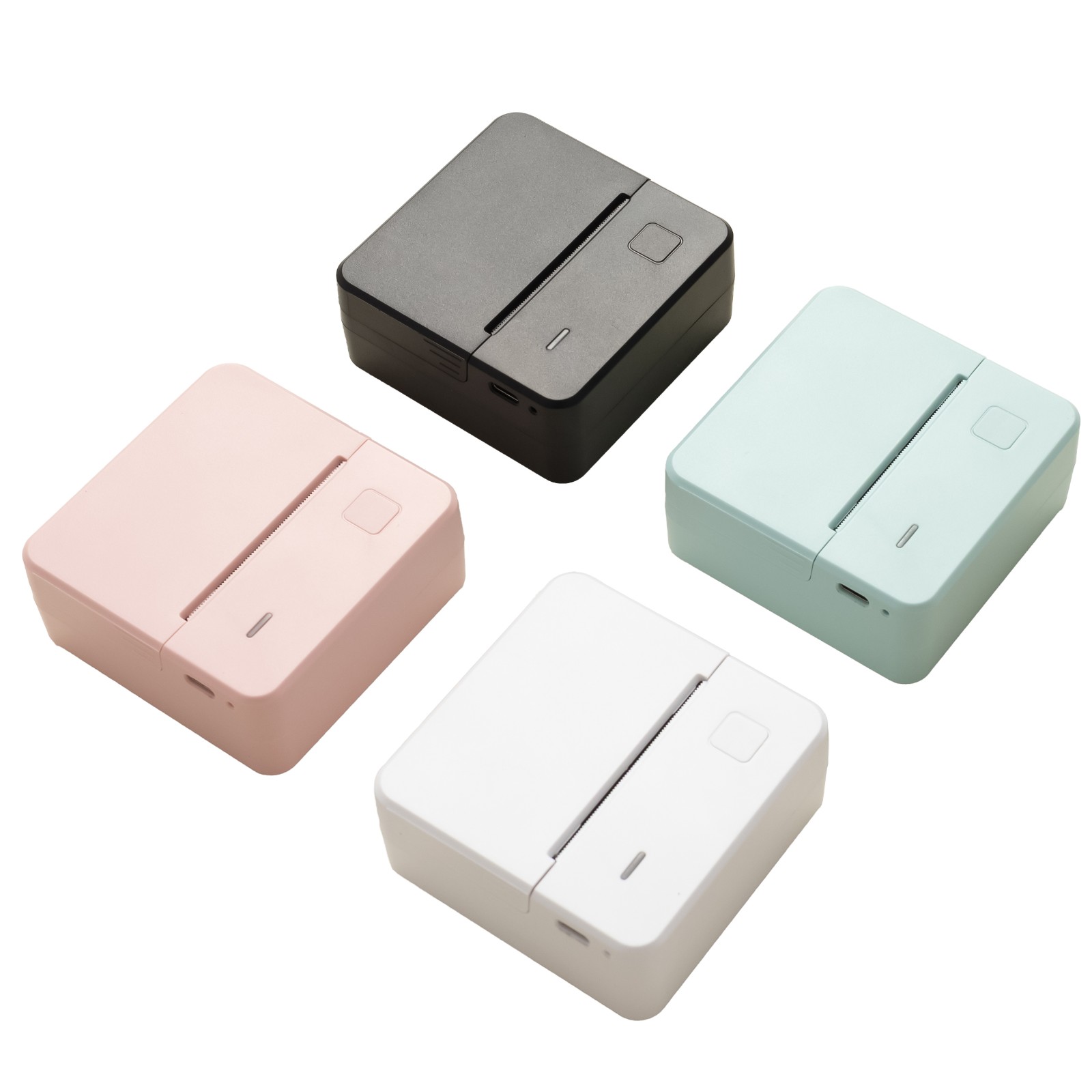

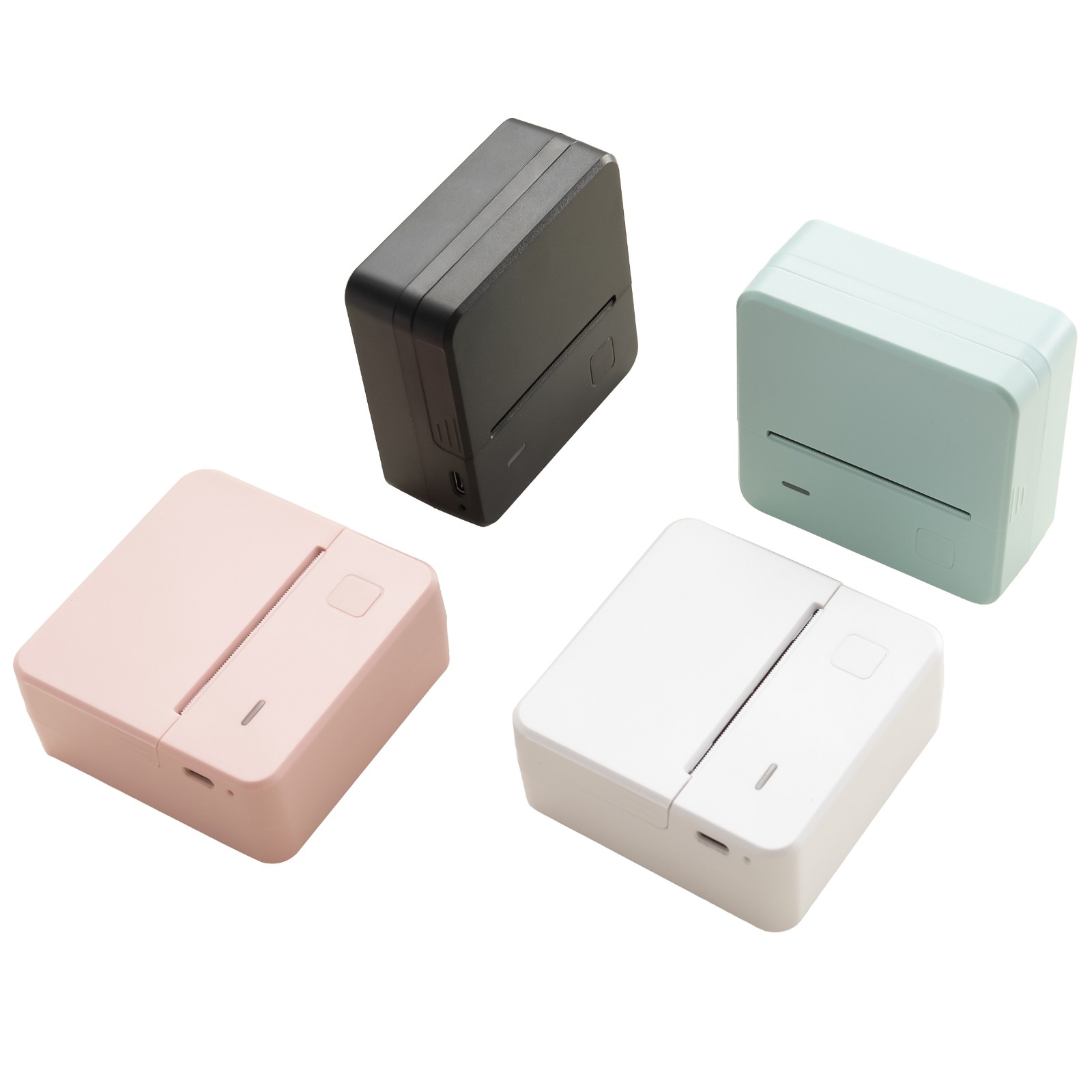

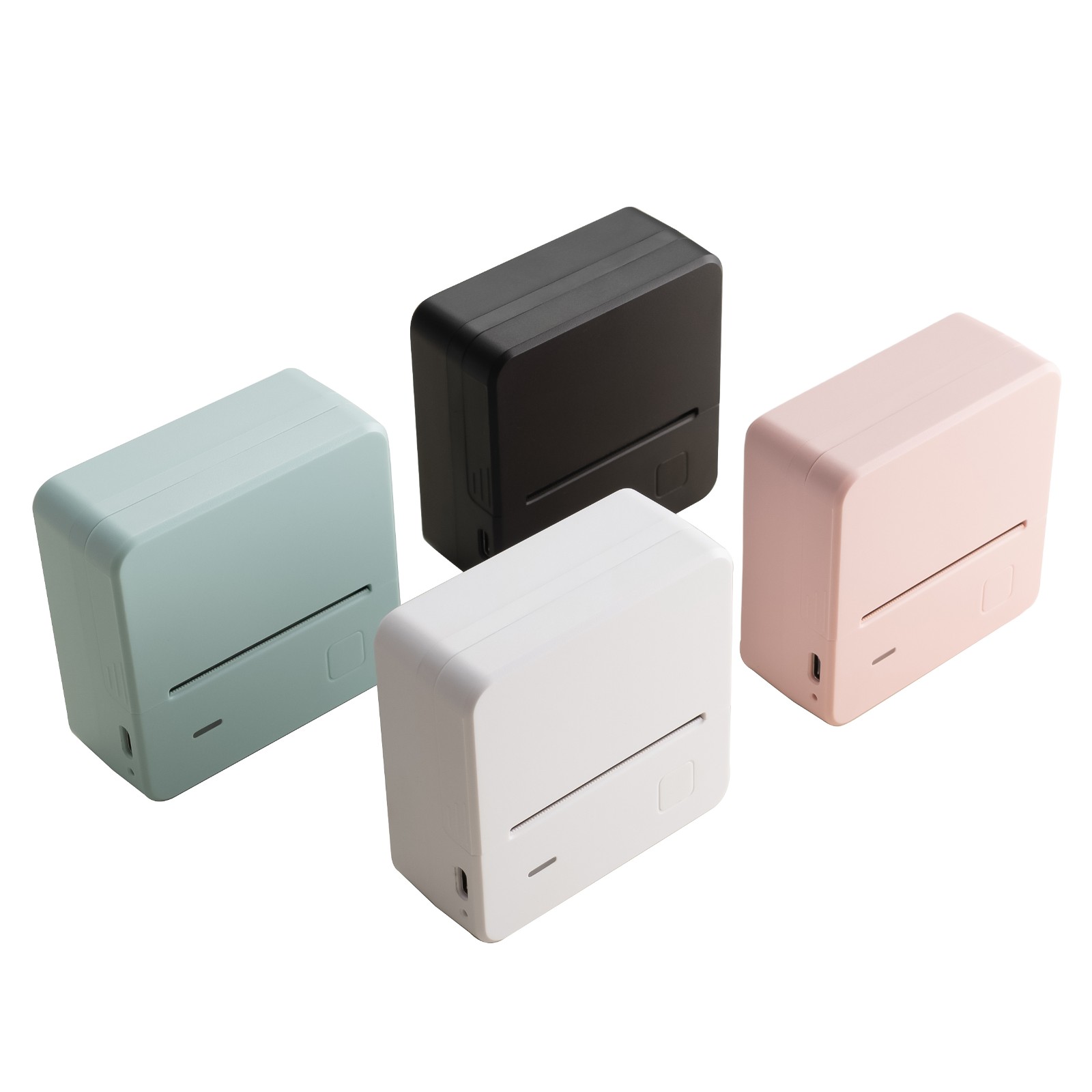

1. Multiple colors available
2. 2000Mah/3.7V rechargeable li-ion battery
3. OEM & ODM available.
4. 40mm/s printing speed

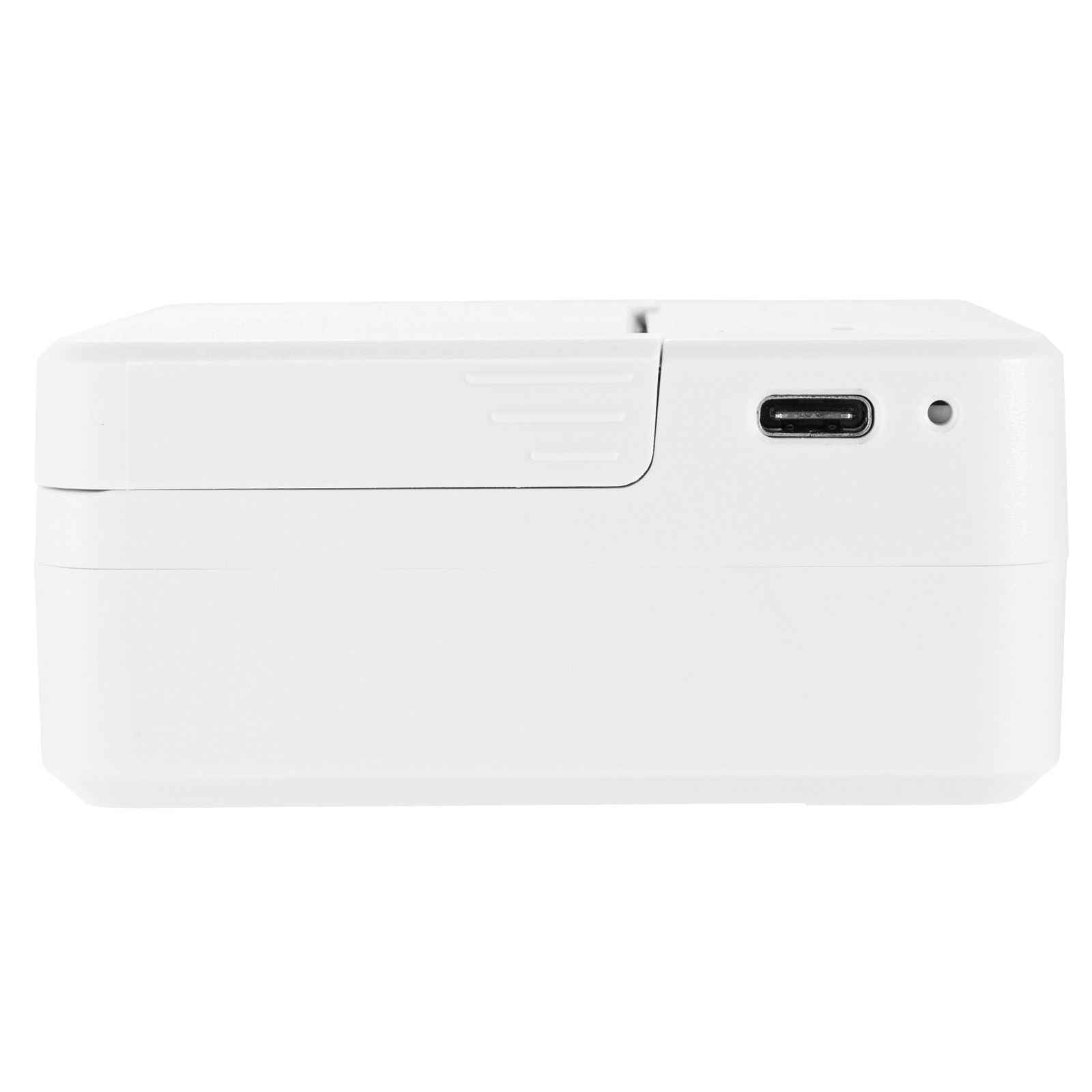

5. Support USB (type C)and Bluetooth interfaces
Specification:
ITEM | Parameter | |
Printing | Method | Thermal dot line printing |
Resolution | 203dpi, 8dots/mm | |
Speed (Max) | 40mm/s | |
Paper | Width | 58mm |
Valid printing width | 48mm | |
Thickness | 60～80μm | |
Roller diameter | ≤30mm | |

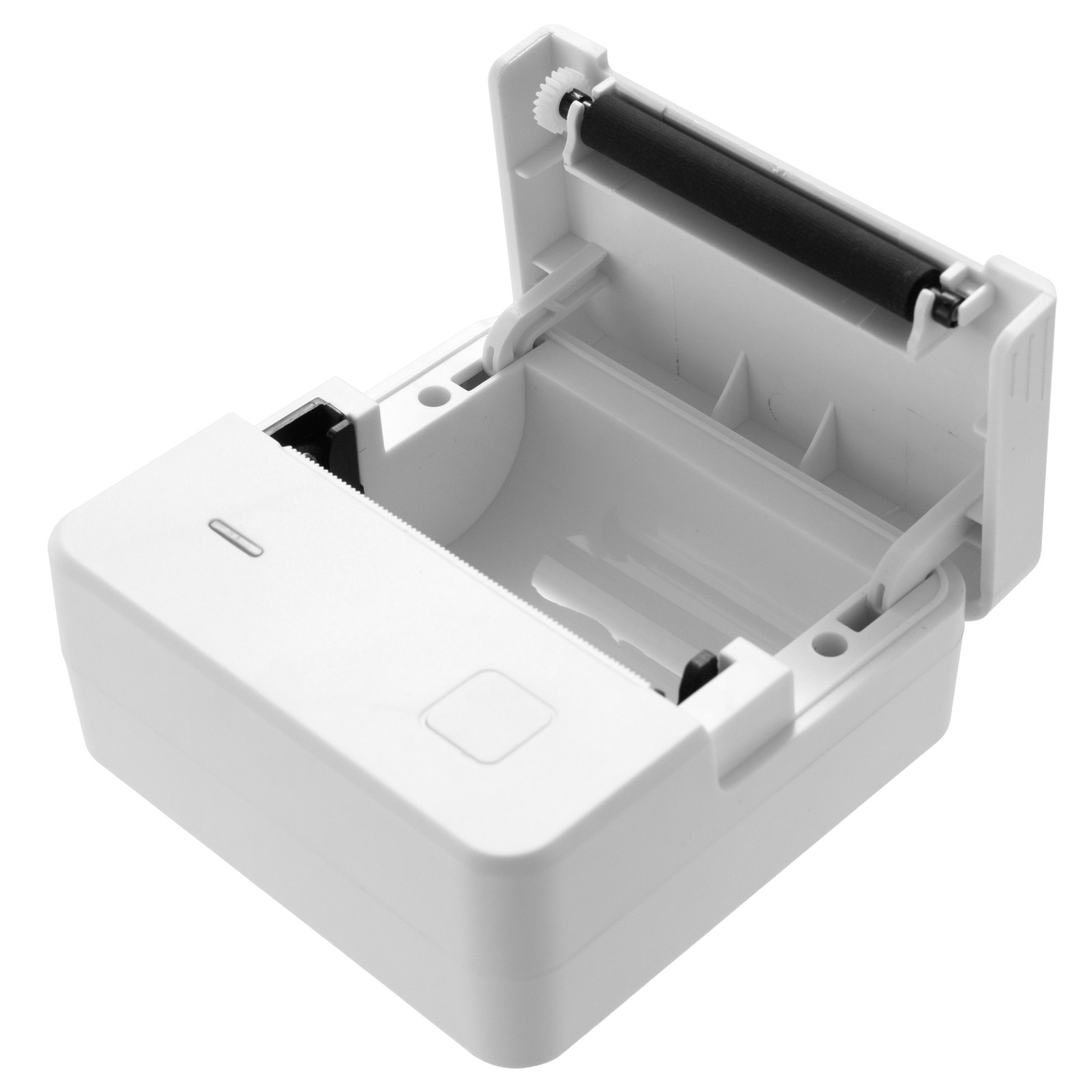

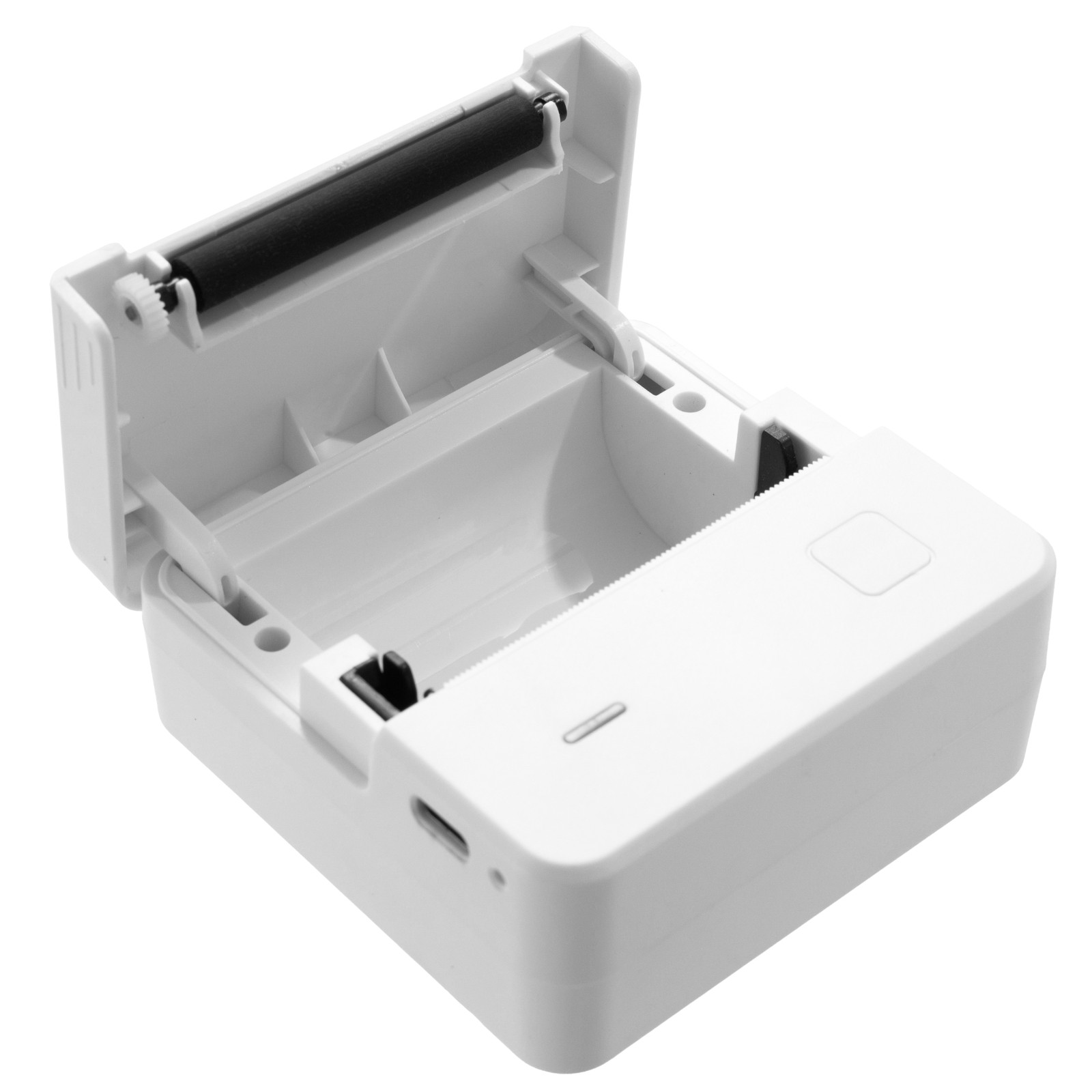

Loading | Easy loading mechanism | |
Interface | Bluetooth and USB | |
Character Set | Font | ASCII:9×17,12×24; Multiple code pages support |
Barcode Symbologies | 1D | UPC-A, UPC-E, EAN8, EAN13, CODE39, ITF, CODEBAR, CODE128, CODE93 |
2D | QR code | |
Graphics | Support bitmap printing with different density and user defined bitmap printing (Max. 40K for per bitmap, and Max. 64K for total) | |
Detection | Sensors | Paper out/ Low battery /high temperature |
Command | ESC/POS | |
Charging | Adapter | 5V/1A in adapter |
Battery | 2000mAh/3.7V rechargeable Li-ion battery | |
Physical characteristics | Working condition | -10°C ~ 50°C, 20% ~ 85% R.H |
Storage condition | -20°C ~ 70°C, 5% ~ 95% R.H | |
Dimension | 81.8*81.8*37.3mm(W*D*H) | |
Weight | 136g (without paper roll) | |
